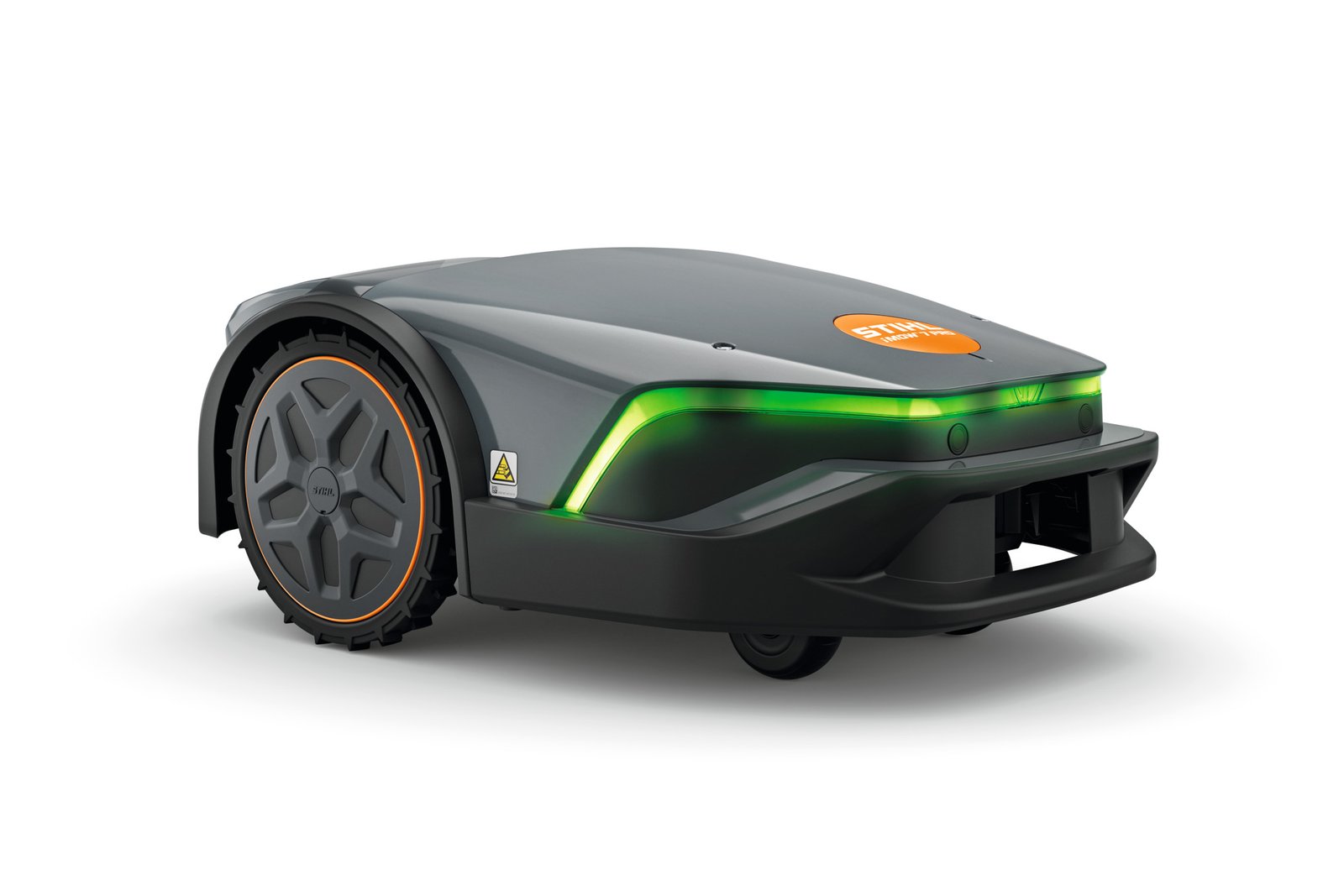

Stihl iMow 7 PRO ROBOTIC MOWER

iMow® 7 PRO: Professional, fully automatic maintenance of large lawns

The iMOW® 7 PRO is part of the latest generation of iMOW® robotic mowers from STIHL. Designed for mowing commercial areas, it’s the first iMOW® with Team function which allows up to 3 iMOW® robotic mowers to operate in the same mowing zone at one time – providing your lawns with a beautiful, green finish without needing to lift a finger. Capable of cutting lawns of up to 5,000 m2 / 8,000 m2 when working as part of a team, and gradients of up to 45%, the iMOW® is powered by a high-performance lithium-ion battery for efficient and continuous work over long working periods.

The iMOW® is controlled using the MY iMOW® app which controls all the functions for the robotic mower, such as sending it out to mow, returning it to the dock, changing the mowing plan, adjusting the cutting height or checking the current status of the iMOW®. The iMOW® 7 PRO has a mobile connection which means you can connect to it via the MY iMOW® app at any time and send it out to mow even when away from the mower. It can also connect to the MY iMOW® app via a WiFi network or Bluetooth connection when close to the machine as well. The iMOW® 7 PRO is integrated with STIHL Connected fleet management too, which always shows the usage information and location of the robotic mower too.

The iMOW® is installed by laying or burying a thin wire around the outer edge of the lawn and around obstacles that might be in the grass, such as shrubs, trees, flower beds or water features. Then, a second wire in the centre of the lawn helps the iMOW® to travel home to charge. If the iMOW® comes across objects in the mowing area then it’s sensors will activate, causing it to slow down, softly bump into it and then go off into another direction. You can install you iMOW® yourself via the MY iMOW® app, which provides guided instructions on how to complete the install. You can also follow our playlist on how to install the iMOW® too! If installing this way, you will need the appropriate installation kit (sold separately) for your lawn size in order to install the iMOW®. For complex lawns with multiple mowing plans, you can request for your local STIHL Approved Dealer to install the iMOW®. To do so, please get in touch with your local STIHL Approved Dealer directly.

The iMOW® is fitted with 3 free-swinging, extra-sharp and robust Duro blades which provide a clean cut lawn every time. These blades rotate each time they stop, and they last twice as long as standard blades thanks to the hardened outer layer. If the blades become damaged, they can easily be replaced as well.

The iMOW® is a mulching mower. Mulching is the process of cutting the grass into small clippings which are then dropped back into the lawn, acting as a natural and nutrient-rich fertiliser. Plus you have the added bonus of not having to empty a grass catcher box again! Because the iMOW® cuts the grass little and often, the clippings decompose quickly – leaving no trace of them, apart from a well-nourished, lush, green lawn.

You can build a dynamic mowing plan for your iMOW® which is tailored to your needs and program it to mow at a time that is convenient for you. Rain sensors on the iMOW® detect when it rains so you can choose whether to let the iMOW® continue to work in the rain or make up the mowing time when it dries up. Thanks to the intuitive software of the iMOW®, you don’t have to worry about charging it either – when the iMOW® finishes its mowing plan it finds its way back to its weather-proof docking station and charges itself efficiently, ready for the next time it goes out to cut. If the robotic mower is detected being carried, it triggers an alarm signal, which is switched off automatically when the iMOW® 7 PRO is set down. The iMOW® 7 PRO automatically disables its control functions if it is removed from its previously defined home area which acts as theft protection.

If you want to check the status of the iMOW® or can’t access the MY iMOW® app, you can press the info button on the control panel at the top of the iMOW® which will talk to you and tell you when the next mowing session is. Using these buttons you can send the iMOW® home, out to mow or lock the mower without going onto the app. The iMOW® 7 PRO also has an LED matrix display at the top of the iMOW which shows the current status, such as spinning blade when mowing or a padlock when locked in the dock.

Please be aware that the iMOW® robotic mower is not a toy. Children and small animals must be kept away from the mowing area when it is out to mow. You must also make sure the mowing area is clear of small objects. For further safety information, please read the instruction manual.

The iMOW® will receive security updates for at least 24 months after purchase.

Features

The pictures shown are sample photos. The actual appearance of the equipment features and their specific attachment to the product may differ from the pictorial representations, but will have the same functionality.

REMOTE ACCESS

EVERYTHING UNDER CONTROL AND IN VIEW. With iMOW® fleet management in the STIHL Connected app, you are always kept up to date with the status of the robotic mower. With STIHL Connected, you can also change settings for your entire iMOW ® fleet, such as the cutting height or the sensitivity of the rain sensor, as well as adjust the mowing plan. You can also always see the location and operating status of your robotic mowers.

iMOW® TEAM FUNCTION

ACHIEVE MORE AS A TEAM. The iMOW® can mow lawns of up to 8,000 m², such as football pitches, when working as part of a team. Up to 3 robotic mowers can be installed as a team and one boundary wire is used for all of the robotic mower’s mowing plan. A guide wire is laid for each robotic lawnmower so that each iMOW® can reliably find its way to the assigned mowing area and back to its docking station.

DISC-CUT SYSTEM

OPTIMUM MOWING RESULT. High rotational speed and 3 free-swinging, extra-sharp blades provide a cleanly cut lawn every time. The direction of rotation is automatically alternated on a regular basis, extending the life of the blades.

ELECTRIC CUT-HEIGHT ADJUSTMENT

THE APP MAKES IT EASY. You can adjust the cutting height of your robotic lawnmower directly via the app.

TOOL-FREE BLADE CHANGE (iMOW)

QUICK AND EASY CHANGEOVER. No tools are required for changing the blades of the iMOW, so it’s easy to replace blades when necessary. For an even cut, we recommend changing all three blades at once when replacing a blunt or damaged blade.

iMOW® PRO CONTROLS

INTUITIVE OPERATION. The Human-Machine Interface (HMI) consists of the control panel, which uses push buttons and the rear LED strip to show all of the iMOW® commands. The front LED strip provides information about the status of the iMOW®. The iMOW® also has voice output which tells you the current task and the length of the mowing plan.

PIN CODE

PROTECTION AGAINST UNAUTHORISED USE. The PIN code on the iMOW® prevents unauthorised people from operating the mower. It consists of a key combination that you define in the MY iMOW® app. This means that only authorised people can control the iMOW® from the control panel after entering the PIN code.

CUSTOMISABLE LIGHTING COLOUR

LED FRONT STRIP WITH ADJUSTABLE COLOURS. The daytime running lights on the LED front strip can be changed so you can specify your preferred light colour. This lets you individually adapt the look of your iMOW® to the corporate identity of a company or sports team club colours.

CONNECTIVITY (iMOW® PRO)

OPTIMAL CONTROL. Connectivity functions mean you can control your mower via the MY iMOW® app, using Wi-Fi or Bluetooth®. On the PRO models, you can also connect the app to the robotic lawnmower via mobile phone, due to a constant 4G internet connection.

ZONE MANAGEMENT

PRECISE WORK. If your garden has complex, awkwardly shaped areas or lots of close-together obstacles you can simplify the mowing plan of the iMOW by defining starting points and specifying preferred mowing zones. This makes work more efficient and faster.

ALARM FUNCTION

EXTENDED PROTECTION. If the iMOW is lifted up, or if the tilt or movement of the power tool changes in an unusual way (carrying detection), an alarm will be triggered. This switches off automatically when the robot mower is set down again. In addition, the robot automatically locks its control functions if it is removed from the home area.

RAIN SENSOR

MOW ON A WEATHER-DEPENDENT BASIS. Thanks to its rain sensor, your iMOW® robotic mower is able to decide whether or not to mow based on the weather. In the settings, you can decide how the robotic lawn mower reacts to rain.

Technical details

Battery system	AAI
Weight	16 kg
Max. gradient	45 %
Max. gradient with kit	55 %
Cutting width	28 cm
Min. cutting height	20 mm
Max. cutting height	60 mm
Guide wires	3 PC
IPX Rating	IPX5(Docking) / IP56(Gerät)
Max. mowing time per 80% battery charge	220 min
Max. mowing time per 100% battery charge	240 min
Charging time for quick charging 80%	80 min
Max. mowing area	5000 m²
Max. device length	70 cm
Max. device width	52 cm
Max. device height	29 cm
Sound pressure level	48 dB(A) 1)
Sound power level	61 dB(A)

¹⁾K-Wert nach RL 2006 / 42 / EG = 2,0 dB(A)
