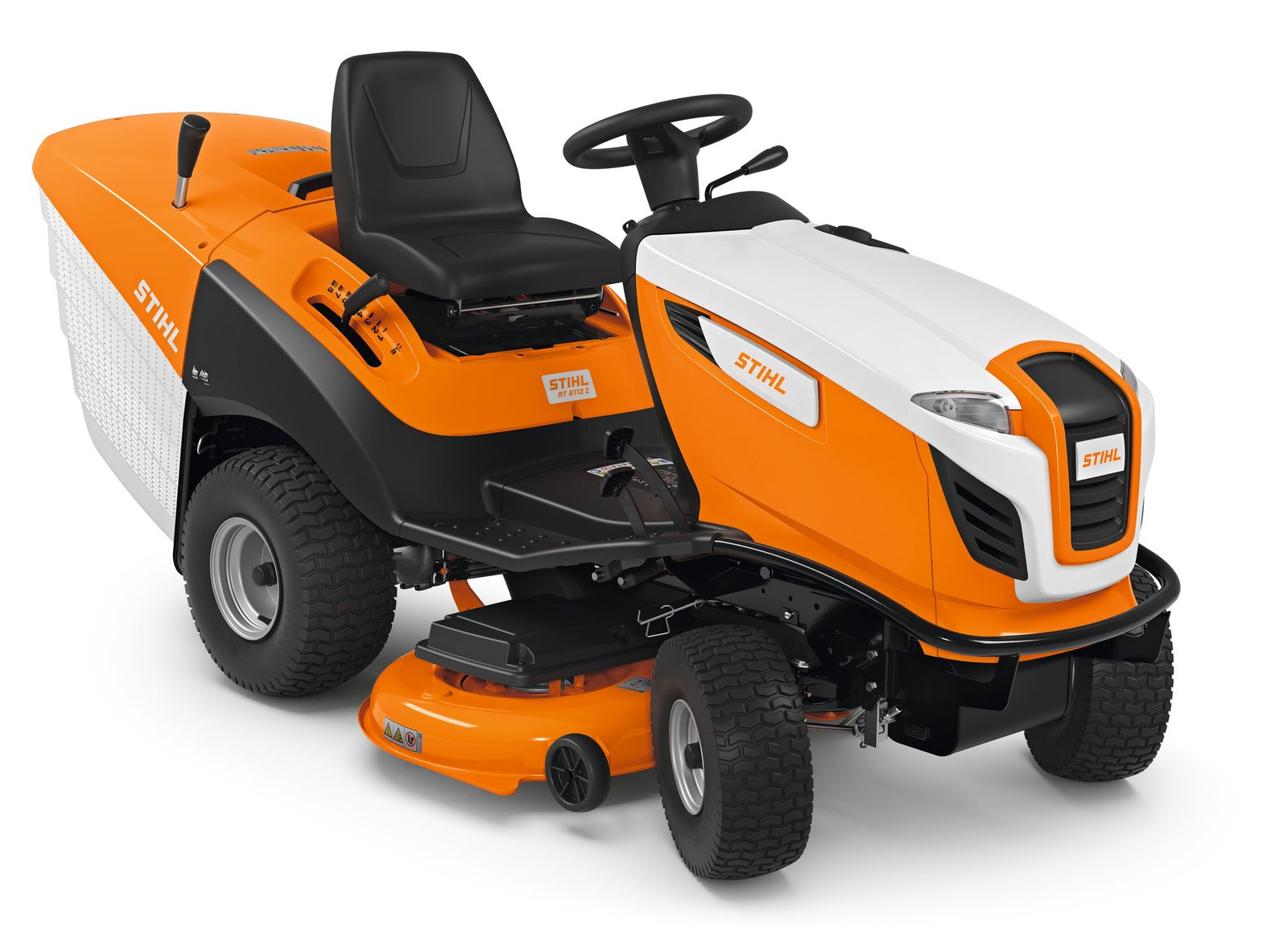

Stihl RT 5112 Z Petrol Ride-on Lawn Mower

RT 5112 Z Petrol Ride-on Lawn Mower: High-performance ride-on mower with wide cutting width

The STIHL RT 5112 Z ride-on mower with a powerful 2-cylinder engine, large grass catcher box and wide (110 cm) cutting width, is perfectly designed for large lawns up to 6000 m². Enjoy the sprung loaded seat which is adjustable to all heights and master the controls which are close at hand: the forward/reverse drive lever at the steering wheel, the central cutting height adjustment, the blade clutch and the lever for effortless emptying of the grass catcher box. The RT 5112 Z features a very powerful twin cylinder STIHL EVC 7000 engine for top level performance. In addition the single-pedal operation and direct steering provide a previously unattained level of comfort during driving, manoeuvring and mowing. The Grass Guide System on both sides of the mowing deck catches grass blades at the edge of the deck and guides them towards the cutting blades. The synchronised blade system provides a neat and clean cutting pattern and class leading grass collection. The RT 5112 Z comes with a 5 year extended warranty (subject to registration and annual servicing).

Features

The pictures shown are sample photos. The actual appearance of the equipment features and their specific attachment to the product may differ from the pictorial representations, but will have the same functionality.

ELECTROMAGNETIC BLADE CLUTCH

The mowing deck can be easily engaged and disengaged by a switch situated on the control panel.

TURF TYRES

The large turf tyres of the STIHL ride-on mower help to protect the lawn. Thanks to their rounded tyre design, they reduce the formation of driving tracks.

CENTRAL CUT-HEIGHT ADJUSTMENT FOR RIDE-ON LAWN MOW

The lever to adjust the deck cutting height is located directly next to the driver’s seat. It enables individual adjustment of the cutting height in up to eight steps.

ROBUST FRAME

The robust frame construction gives the mower a high level of stability and driving comfort. The STIHL ride-on mowers compact design  is great for using attachments such as the AGW 098 garden roller or PICK 300 tilting trailer.

SPRING-LOADED AND ADJUSTABLE SEAT

The most comfortable seat position can be set without the use of tools. This allows individual adjustment of the driver’s seat to almost any body size.

LOW STEP

The low step on the STIHL ride-on mowers provides ample legroom and allows for comfortable access to the seat.

CATCHING MANAGEMENT SYSTEM

The catching system guides the grass blades across the entire working width of the mowing deck. It helps to guide the grass towards the mowing blades for a more efficient cut.

GRASS COLLECTION BOX WITH SABRE HANDLE

The polymer grass catcher box can be emptied effortlessly from the driver’s seat simply using the curved shaped handle. The “dumper” design ensures optimum filling and residual-free emptying of the grass catcher box. Cleaning the catcher box is also easy.

SINGLE PEDAL DRIVE

With the STIHL single pedal drive, the direction of travel can be conveniently switched between forward and reverse gear using a hand lever for quick manoeuvring. The pressure-sensitive pedal allows for precise control of the speed between top speed and standstill. The separate brake pedal ensures immediate stopping.

SYNCHRONOUS MOWING DECK

The synchronous mowing deck provides consistent cutting quality and optimum grass flow through to the catcher box. This is made possible by the synchronised rotation of the blades, which are offset by 90°.

Technical details

Displacement	635 cm³
Rated power	12.2 kW / 16.6 hp
CO2	850 g/kWh
Gear type	Hydrostatic
Motor type	EVC 7000.0
Device weight	258 kg
Cutting width	110 cm
Cutting height	30 – 100 mm
Tank capacity	9 l
Rated speed	2700 rpm
Turning radius	0.7 m
Grass catcher box volume	350 l
Device length without grass catcher box	206
Device length with grass catcher box	260 cm
Device width with mowing unit	117 cm
Device height to seat	116 cm
Sound power level, guaranteed LWA	100 dB(A)
Measured sound pressure level LpA	86 dB(A)
Uncertainty factor, sound pressure level KpA	2 dB(A)
Vibration level at seat	0.98 m/s²
Uncertainty, vibration on seat	0.49 m/s²
Vibration level at steering wheel	4.4 m/s²
Uncertainty, vibration on steering wheel	2.2 m/s²
